Algo 8305-IC InformaCast Multi-Interface SIP Paging Adapter - New
Features:
Algo 8305-IC InformaCast Multi-Interface SIP Paging Adapter
The 8305 Multi-Interface IP Paging Adapter is a versatile device designed to integrate with legacy paging and communication systems. Below is a detailed explanation of its connectivity options and technical capabilities:

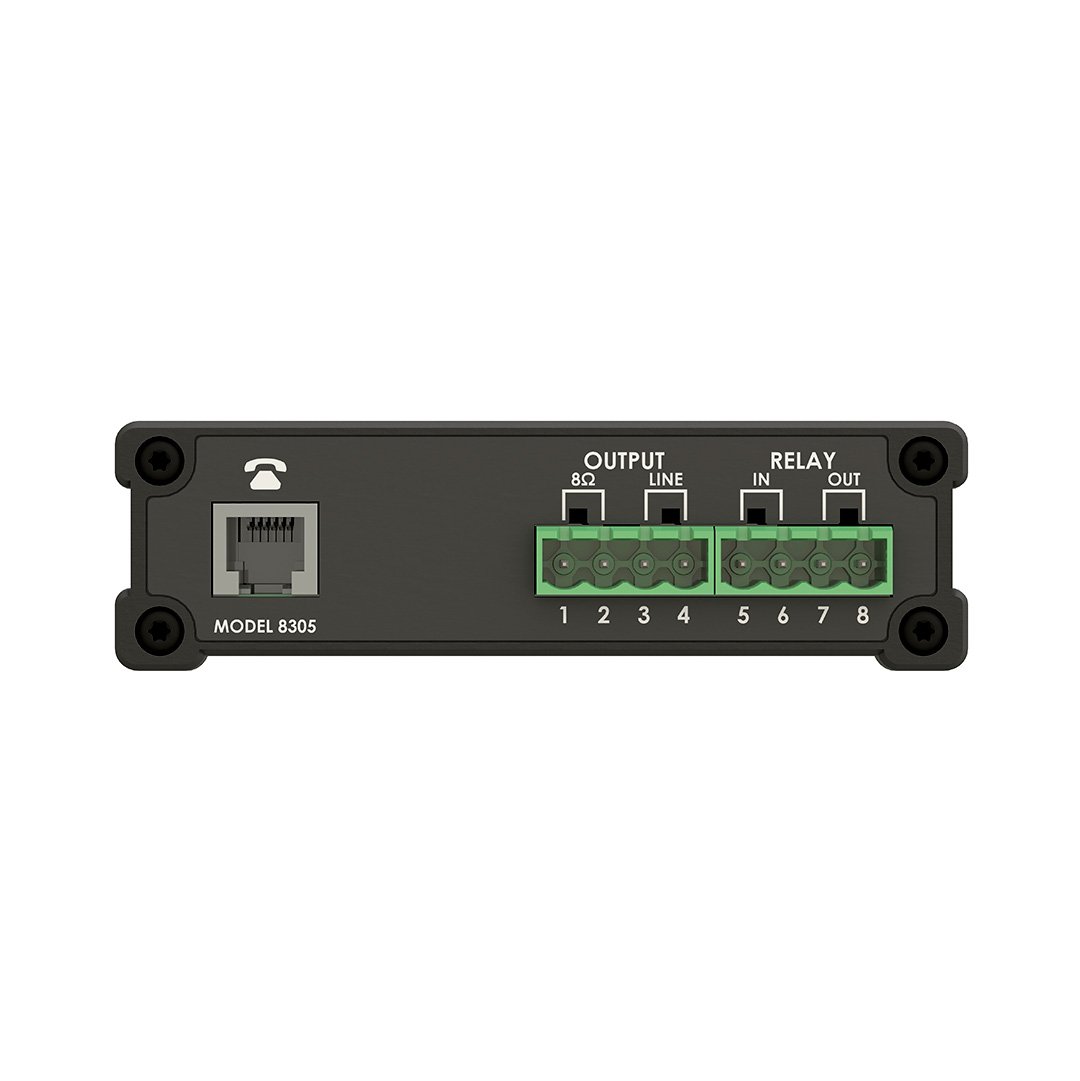

Telephone Port (Talk Battery Pair Interface):
The Algo 8305 includes an analog telephone port (RJ11) for integration with legacy paging and communication systems. This port is designed to replace an existing administrative telephone or similar device by emulating a standard telephone going off-hook to initiate a paging event.
The RJ11 port connects to the system’s talk battery input (the same interface typically used for connecting to an FXO port), allowing the 8305 to function as a telephone equivalent. When connected, it performs a loop start line seizure, draws the standard 48V talk battery, and supports the transmission of DTMF tones and one-way audio to the paging system.
8-Ohm Output for Self-Amplified Speakers:
The 8305 includes an 8-ohm output, which can directly drive self-amplified speakers.
Balanced Line Out:
The Algo 8305 provides a balanced line out connection, similar to the 8301, enabling integration with paging systems. The line out connection emulates a Page Port from a PBX or Key system.
WARRANTY: 3-MONTH WARRANTY/FINAL SALE
