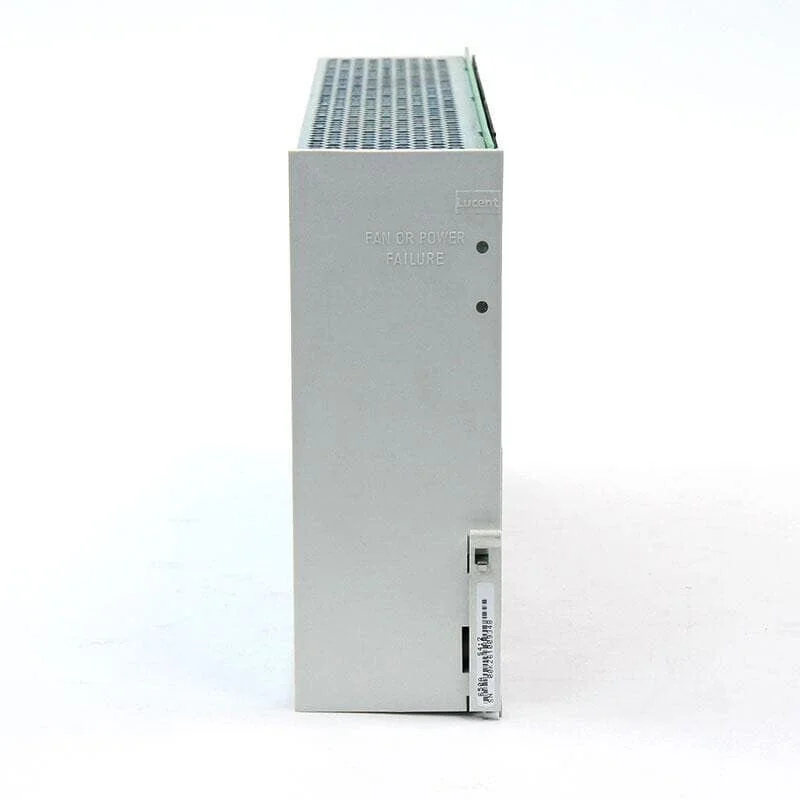

Avaya 650A CMC AC Power Unit 63406, 107949364 - Refurbished
Features:
Global power-factor-corrected AC/DC converter providing multiple DC outputs and AC ring outputs
Autoranging and accepts 85-264 VAC, 47-63 Hz AC input
Provides 330 Watts total output
Provides multiple DC output as follows:
+5.1 VDC, 28A
-5.1 VDC, 1.0A
-48 VDC, 4.5A
+8 to +14 VDC, 1.6A (fan speed control
-150?-115 VDC, 200 mA (neon bus)
Provides 3 switch-selectable ring ouputs:
85 VAC RMS, 80 mA, 20 Hz, centered about -48 VDC, 180 mA
72 VAC RMS, 8 to 80 mA, 25 Hz, centered about -48 VDC, 180mA
Two 28 VAC RMS (56 Veff), 220 mA, 50 Hz biased about -48 VDC and 0 VDC, 70 mA balance
WARRANTY: 90-DAY REPLACEMENT WARRANTY / FINAL SALE
