Features:

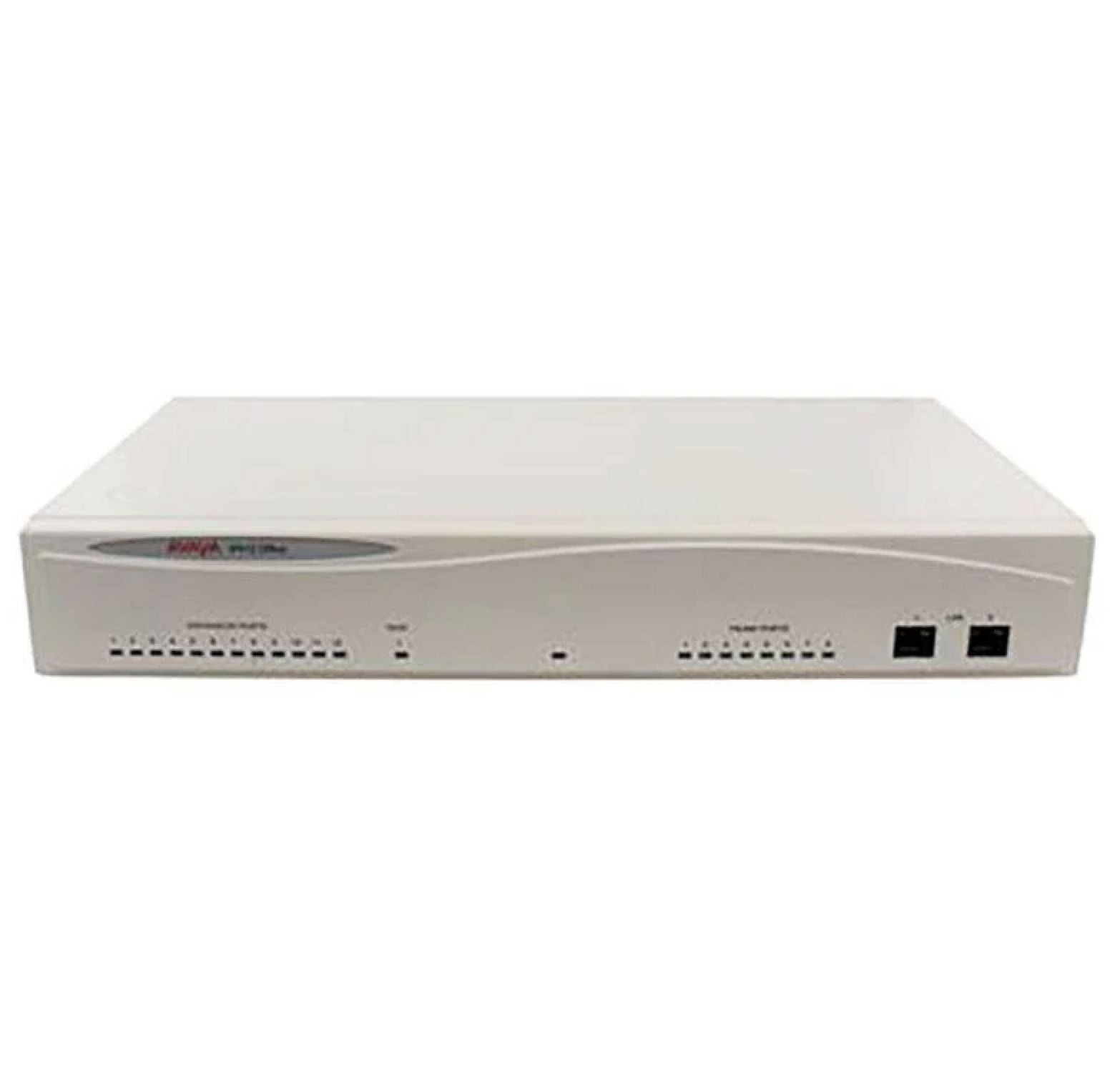

The IP412 Control Unit comes equipped with two internal trunk module slots, two VCM expansion slots, 12 expansion ports, and also additional ports such as Music-on-hold, DTE, external relay switch, and integral WAN port.
Internal trunk module slots: 2
VCM expansion slots: 2
Expansion ports: 12
Music-on-hold port
DTE port
External relay switch for door entry controls
Integral WAN port
Up to 360 extensions
Up to 100 data channels (30 are usable for Voicemail Pro/TAPI WAV connection sessions
Compatibility:
Internal Trunk Module Slots - PRI 24 T1, PRI 48 T1, Quad BRI, and Analog Trunk Module (ATM4)
VCM Expansion Slots - VCM 5/10/20/30 and VCM 4/8/16/24. Maximum voice compression channels capacity of 60 channels.
Expansion Ports - Digital Station 16/30, Phone 8/16/30,So8, WAN3, and Analog Trunk 16
Rack Mount or wall mount bracket Available and sold separately
Includes controller and power adapter.
WARRANTY: 3 MONTH REPLACEMENT WARRANTY / FINAL SALE
Features:
The IP412 Control Unit comes equipped with two internal trunk module slots, two VCM expansion slots, 12 expansion ports, and also additional ports such as Music-on-hold, DTE, external relay switch, and integral WAN port.
Internal trunk module slots: 2
VCM expansion slots: 2
Expansion ports: 12
Music-on-hold port
DTE port
External relay switch for door entry controls
Integral WAN port
Up to 360 extensions
Up to 100 data channels (30 are usable for Voicemail Pro/TAPI WAV connection sessions
Compatibility:
Internal Trunk Module Slots - PRI 24 T1, PRI 48 T1, Quad BRI, and Analog Trunk Module (ATM4)
VCM Expansion Slots - VCM 5/10/20/30 and VCM 4/8/16/24. Maximum voice compression channels capacity of 60 channels.
Expansion Ports - Digital Station 16/30, Phone 8/16/30,So8, WAN3, and Analog Trunk 16
Rack Mount or wall mount bracket Available and sold separately
Includes controller and power adapter.
WARRANTY: 3 MONTH REPLACEMENT WARRANTY / FINAL SALE
