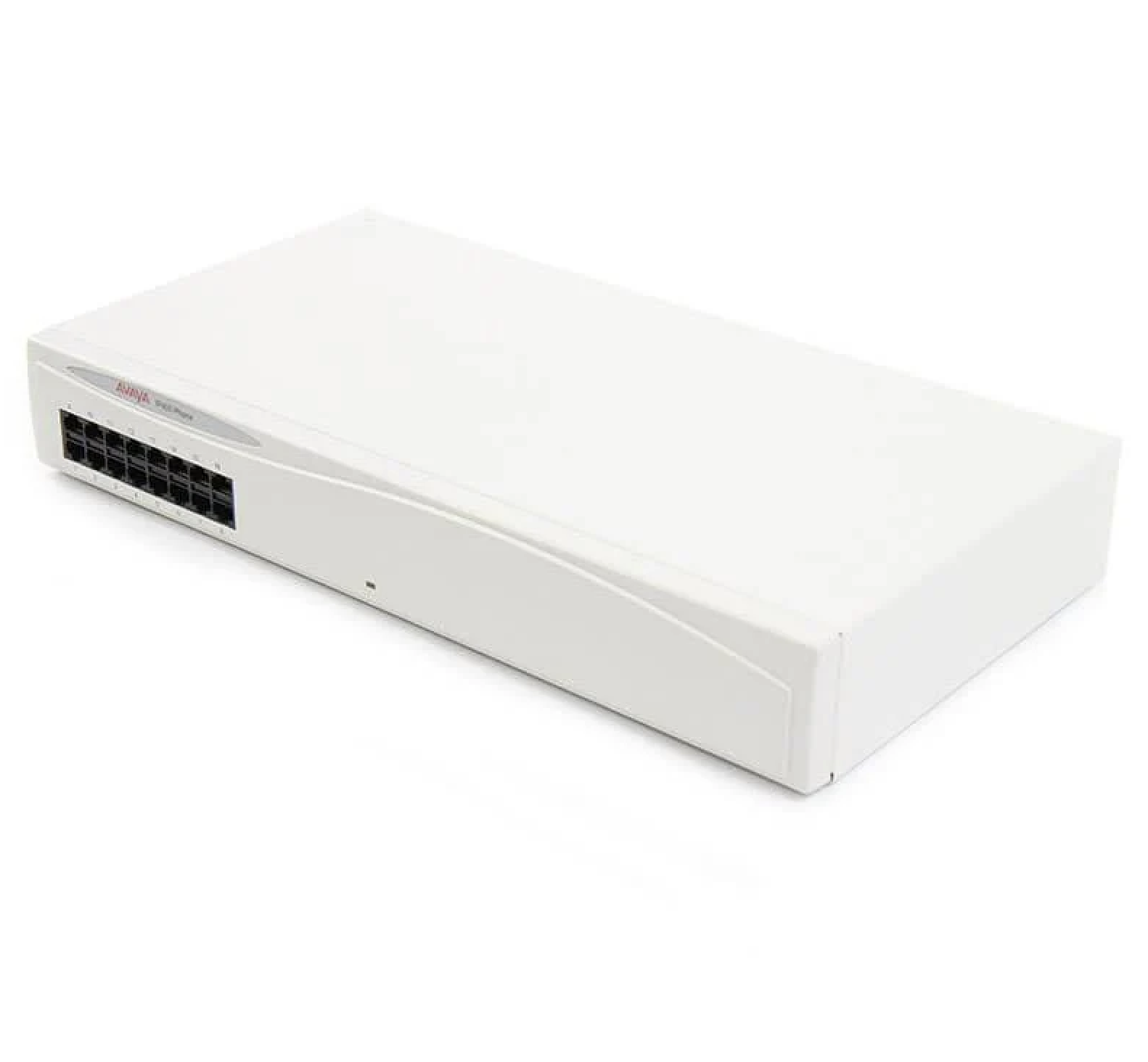

Avaya 700359904 IP400 Phone 16 V2 Expansion Module - Refurbished
Features:
The Avaya IP400 Phone 16 V2 provides 16 additional analog station ports for your Avaya IP Office system.
Provides an additional 16 Plain Ordinary Telephone (POT) ports for use with analog telephones
Changes from V1 to V2: The Phone V2 uses an earthed 3-pin 60W external power supply unit. With IP Office 3.1, the message waiting indication (MWI) on each POT port can be configured for None, On, 51V Stepped, 81V, Line Reversal A or Line Reversal B. On uses the default determined by the system locale. POT ports on a Phone V2 module can additionally be configured for 101V operation. The ports do not include a ringing capacitor. Therefore for phones where this is a requirement, connection should be via a Master socket containing ringing capacitors. The DTE serial port on the rear of the module has been changed to a 9-pin D-type socket.
Compatible with IP403, IP406 V1, IP406 V2, and IP412
Compatible with IP500 running R4.2 or earlier; Professional Edition is required
Compatible with IP500 running R5.0 or higher
Compatible with IP500 V2 running R6.0 or higher
Not compatible with IPO Basic Mode
Rack Mount or wall mount bracket Available and sold separately
Includes power adapter.
WARRANTY: 3 MONTH REPLACEMENT WARRANTY / FINAL SALE
