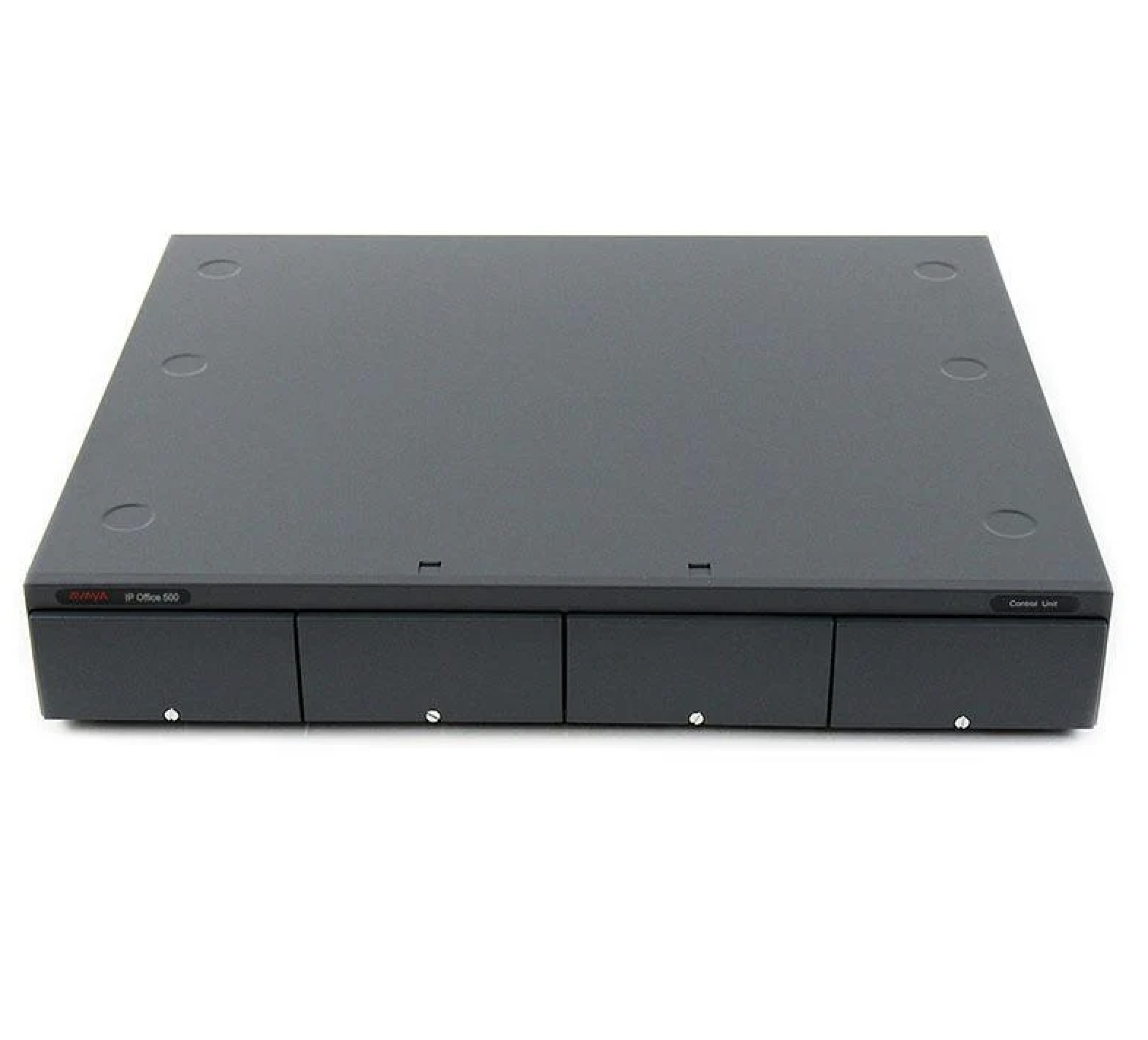

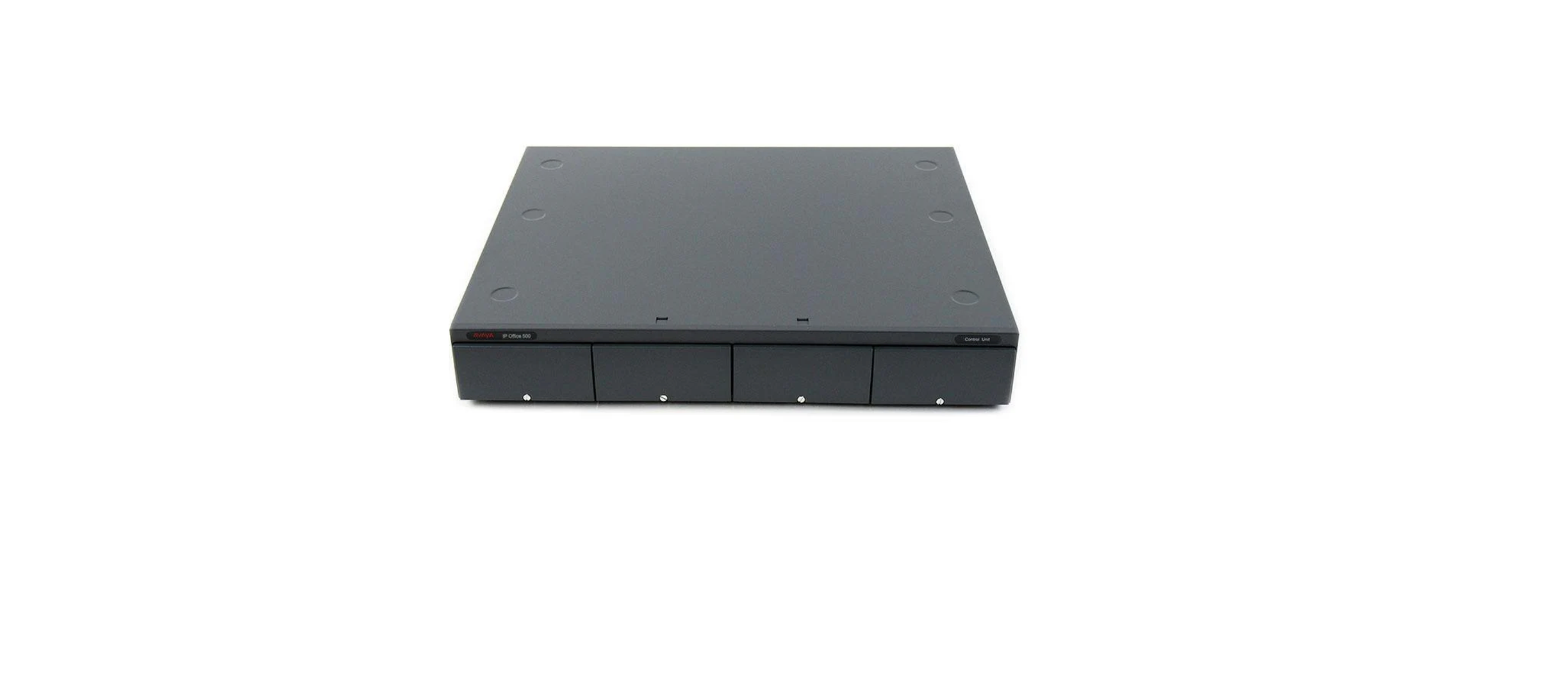

Avaya 700417207 IP500 V1 Control Unit - Refurbished

Features:

• The Avaya IP500 Control Unit is the main processing unit for the IP Office IP500 system. IP Office 5.0 or greater provides support for up to 384 users.

• 4 Base Card Slots - Can accommodate Digital Station, Analog Phone, and VCM base cards. Also accommodates the Legacy Card Carrier.

• Trunk Cards - Supports IP500 trunk daughter cards connected to IP500 Base Cards. Also supports IP400 trunk cards using the Legacy Card Carrier.

• VCM Card Slots - Supports a maximum of 128 channels

• Voicemail Channels - Maximum 30 usable for Voicemail Pro/TAPI WAV connection sessions

• 8 Expansion Ports - Compatible with Digital Station 16/30, Phone 8/16/30,So8, WAN3, and Analog Trunk 16.

• 2 LAN Ports - Full duplex 10/100 Mbps; managed layer 3 Ethernet switch

• 1 Dedicated Feature Key Smart Card Slot - Used for Smart Card Feature Key. Required for control unit use and activation of application licenses.

• Additional Ports - Music on-hold, DTE port, external relay switch for door entry controls, integral WAN port

• The Avaya IP500 (V1) Control Unit is compatible with the above base cards and external expansion modules

• Compatible with 1400, 2400, 5400, 6400, and 9500 series digital phones (configuration and SW level dependent)

• Compatible with 1600, 4600, 5600, and 9600 series IP phones (configuration and SW level dependent)

• Avaya IP500 V1 Control Unit includes power cord.

• Controller only includes 2 slot covers.

• SD Card is required and not included

WARRANTY: ONE-YEAR REPLACEMENT WARRANTY / FINAL SALE
