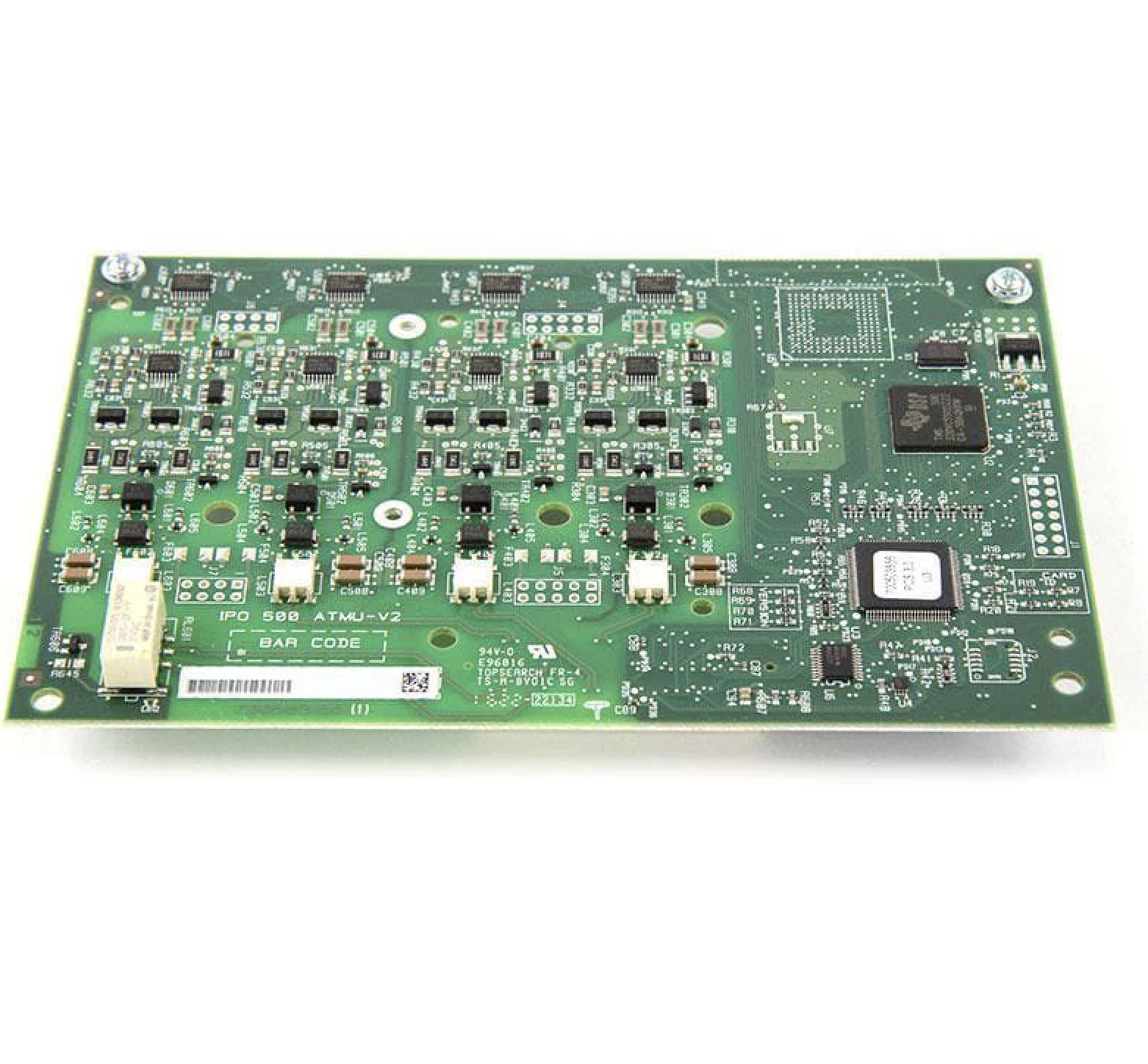

Avaya 700503164 IP500 ATM4 V2 Universal Analog Trunk Daughter Card

from $59.00
Condition:

Features:

  • The Avaya IP500 Analog Trunk Card 4 provides 4 additional analog trunk ports on your Avaya IP Office system.

  • Connects to IP500 base card - When connected to IP500 base card, it provides 4 loop-start analog trunk ports

  • Also provides DTMF, caller ID (ICLID), busy tone detection

  • Adjustable echo cancellation - Selectable to Off, 8, 16, 32, 64, and 128 milliseconds

  • Power Failure Transfer - When fitted to an IP500 analog phone base card. During power failure, the first extension port (port 1) is connected to the first analog trunk (port 9)

  • Maximum - 4 per IP500 control unit

  • IP Office 6.1 - Must have a minimum software level of 6.1(20)

  • IP Office 7.0 - Must have a minimum software level of 7.0(12)

  • IP Office 8.0 or higher

  • Requires an IP500 Digital Station 8, Analog Phone 2, Analog Phone 8, ETR 6, TCM 8, VCM 32, or VCM 64 base card with empty daughter card slot

WARRANTY: ONE-YEAR REPLACEMENT WARRANTY

Features:

  • The Avaya IP500 Analog Trunk Card 4 provides 4 additional analog trunk ports on your Avaya IP Office system.

  • Connects to IP500 base card - When connected to IP500 base card, it provides 4 loop-start analog trunk ports

  • Also provides DTMF, caller ID (ICLID), busy tone detection

  • Adjustable echo cancellation - Selectable to Off, 8, 16, 32, 64, and 128 milliseconds

  • Power Failure Transfer - When fitted to an IP500 analog phone base card. During power failure, the first extension port (port 1) is connected to the first analog trunk (port 9)

  • Maximum - 4 per IP500 control unit

  • IP Office 6.1 - Must have a minimum software level of 6.1(20)

  • IP Office 7.0 - Must have a minimum software level of 7.0(12)

  • IP Office 8.0 or higher

  • Requires an IP500 Digital Station 8, Analog Phone 2, Analog Phone 8, ETR 6, TCM 8, VCM 32, or VCM 64 base card with empty daughter card slot

WARRANTY: ONE-YEAR REPLACEMENT WARRANTY
