Features:

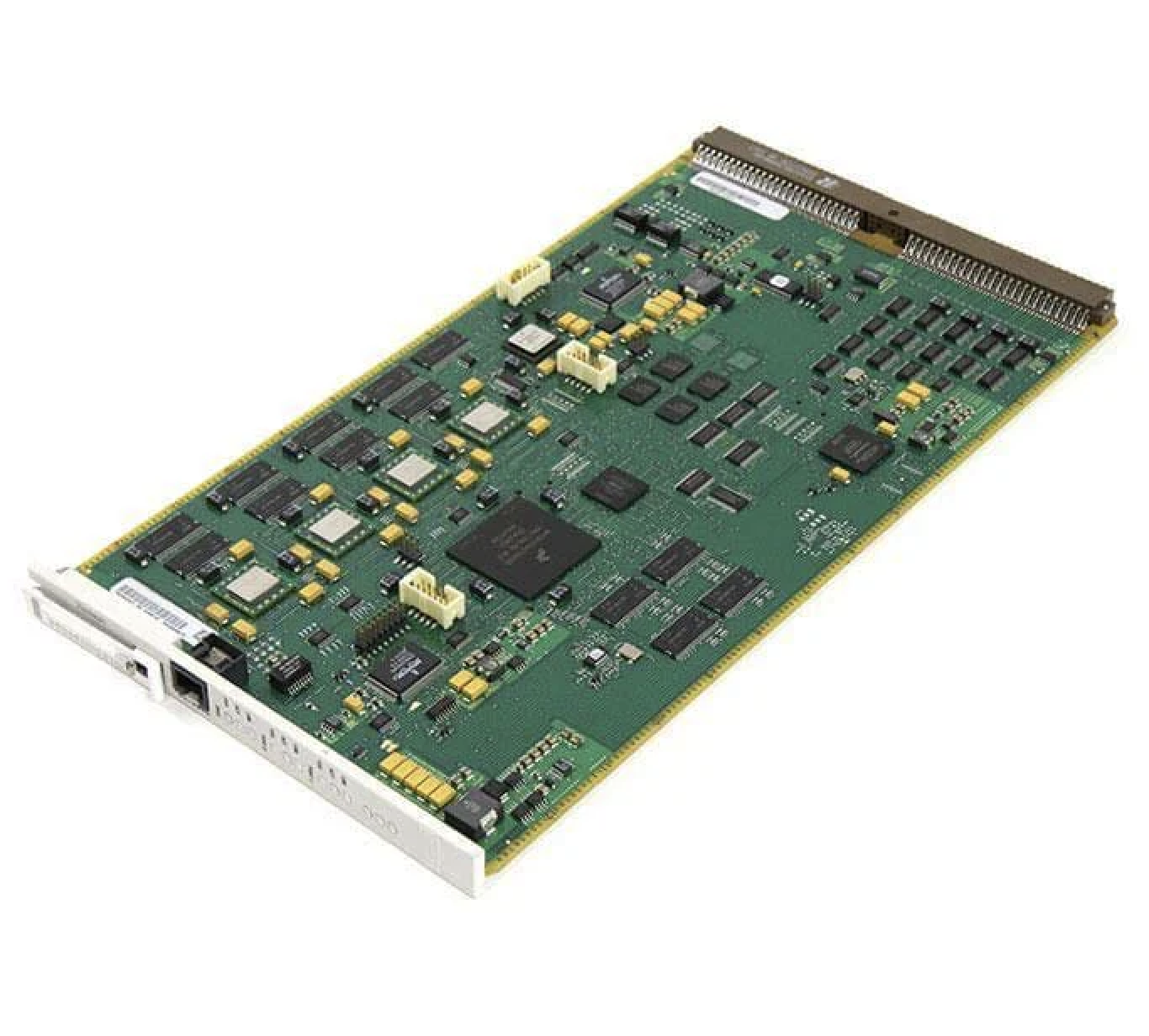

The TN2602AP IP Media Resource 320 provides high-capacity voice over Internet protocol (VoIP) audio access to the switch for local stations and outside trunks.
The IP Media Resource 320 provides audio processing for the following types of calls:
TDM-to-IP and IP-to-TDM - for example, a call from a 4602 IP telephone to a 6402 DCP telephone
IP-to-IP for example, a non-shuffle conference call
The TN2602AP IP Media Resource 320 circuit pack has two capacity options, both of which are determined by the license file installed on Communication Manager:
320 voice channels, considered the standard IP Media Resource 320
80 voice channels, considered the low-density IP Media Resource 320
The IP Media Resource 320 is compatible with the SCC1, MCC1, and G650 media gateways (G650 is preferred)
Not supported in CMC1 and G600 media gateways
Supported by Avaya Communications Manager R3.1 or higher
Only two TN2602AP circuit packs are allowed per port network
WARRANTY: 90-DAY REPLACEMENT WARRANTY / FINAL SALE
