Features:

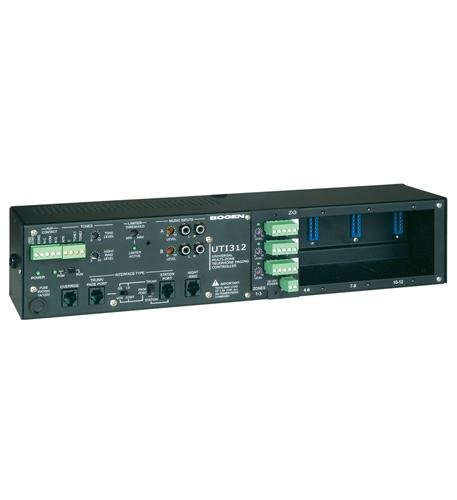

Bogen multi-zone paging controller
3 to 12 Zone
Provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers
Compatible with all standard analog port types
Comes with a pre-installed ZX3 module for three zones of paging and is expandable up to 12 zones
Offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups
Offers flexible dialing
Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
Simple 2-switch interface setup
Programmable activation of AUX contacts
C-form contact per zone
24V DC,1A internal power supply
Provides audio drive for up to 150 one-way self-amplified speakers per zone
Adjustable output limiter with threshold control and active indicator
Two background music busses, selectable per zone
Two high-impedance transformer isolated background music inputs
Stereo combining inputs for background music busses
All-Call paging zone group
Auto Select paging zone group
Override paging (using loop start trunk or page port contact closure activation) with zone group
Night Ringer (90V and contact closure activation) with zone group
Two Tone Triggers (tone and duration selectable, closure activated) with individual zone groups
Select tone burst, chime, double chime, or slow whoop
Code Calling with zone group
2 to 5 Digit dialing with flexible dialing plan for zone and zone group numbers
Non-volatile memory for setup data (no backup battery required)
Pre-Announce Tone
Confirmation Tone
Setup Tone to assist in volume setting
Pluggable terminal strips
Microcontroller-based operation
DTMF programming
DTMF Block to help suppress DTMF tones over paging system
Programmable timers control page duration (station and trunk)
Wall- or Rack-mountable
2 Year manufacturer's warranty
(+20) Bogen power units
Accessory modules BG-ZX3 - SOLD SEPARATELY
Color: Black
Country of Origin: Taiwan
WARRANTY: ONE-YEAR MANUFACTURER REPLACEMENT WARRANTY/FINAL SALE
