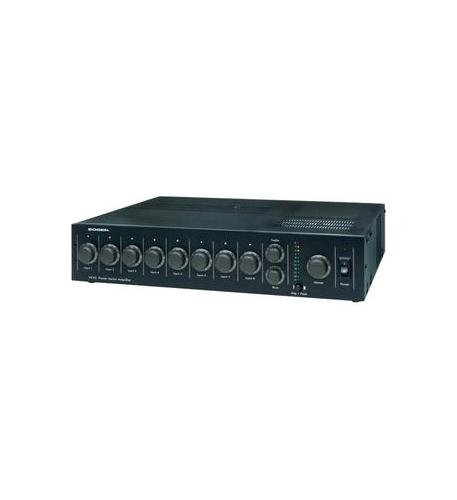

Bogen V100 100-Watt Power Vector Modular Amp - New
Features:
5 models ranging from 35W to 250W each; a mixer-only version (VMIX) is also available
Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
8 module bays
Wide selection of advanced plug-in modules (modules sold separately)
4 levels of priority between modules
2 module bays capable of handling plug-in signalprocessing output modules
11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
Motorized master volume control can be remotely operated
Lockable switch permits user to select either transformer-coupled outputs or a direct low impedance output
5-position barrier strip, with clamping washers, provides connections for speaker loads
Bridging In/Out connector
External access to priority mute buses
Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
Independent volume control for each of the eight module bays
Two-color LED for each channel indicates input signal or clipping
Bass and treble control with bypass switch (located in module bay 6)
125 Hz Low Cut switch (located in module bay 6)
Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input
Pre-EQ, unbalanced, buffered output signal (“post” all unit controls, but “pre” any external “Insert” equipment connected)
Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
8 module security cover/filler plates included with amplifier (PVMC)
Push-button remote volume control panel (Model RVCP, sold separately)
Security cover to selectively protect volume, bass, and treble controls (Model PVSC, sold separately)
Rack mountable (with rack mounting kit RPK87, sold separately)
2 rack spaces high (3-1/2")
Listed to UL Standard 60065 for U.S. and Canada
Color: Black
Country of Origin: Korea
WARRANTY: ONE-YEAR MANUFACTURER REPLACEMENT WARRANTY/FINAL SALE
