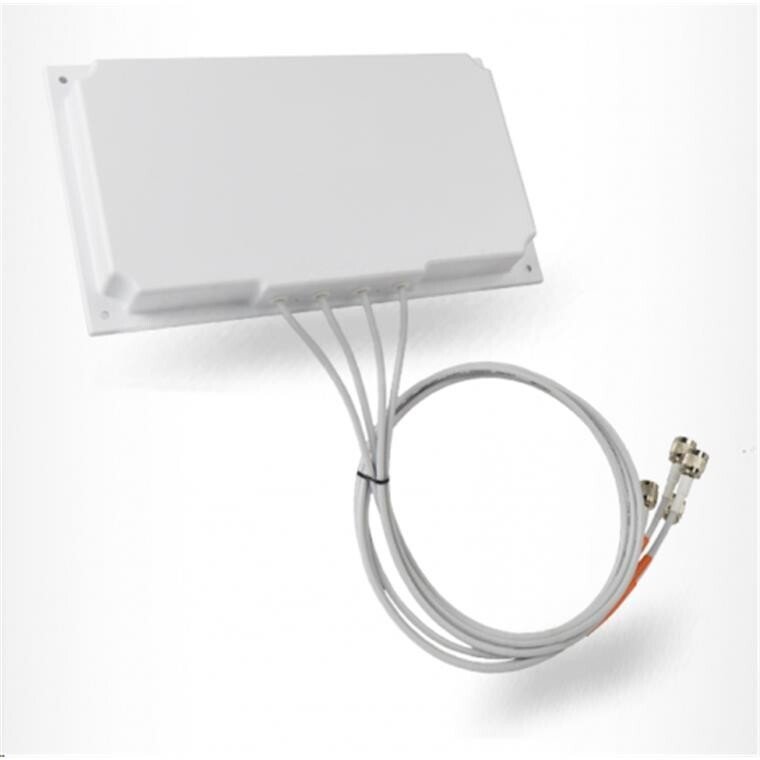

Cisco Aironet Dual Band Antenna AIR-ANT2566P4W-R=

Features:

• This document outlines the specifications for the Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antennas (AIR-ANT2566P4W-R and AIR-ANT2566P4W-RS) and provides mounting instructions.

• Both antennas operate in the 2.4 GHz and 5 GHz frequency ranges and are designed for indoor and outdoor use.

• The AIR-ANT2566P4W-RS antenna includes self-identifying circuitry.

  • Antenna type: 4-element dual-band MIMO

  • Operating frequency range

    • 2400 to 2484 MHz

    • 5150–5850 MHz

  • VSWR: 2:1 or less

  • Gain: 6 dBi in both bands

  • Polarization: Linear, vertical

  • Azimuth Plane 3-dB Beamwidth

    • 2.4 GHz band: 105°

    • 5 GHz band: 110°

  • Elevation Plane 3-dB Beamwidth

    • 2.4 GHz band: 65°

    • 5 GHz band: 55°

  • Length: 6.3 in. (16 cm)

  • Width: 11 in. (27.9 cm)

  • Depth: 1.2 in. (3.05 cm)

  • Weight: 1.4 lbs

  • Cable length and type: 3 ft. (91.4 cm) plenum rated

  • Connector: RP-TNC

  • Environment: Indoor/outdoor

  • Water/Foreign Body Ingress: IP54

  • Operating temperature range: -40° to 158° F (-40° to 70° C)

WARRANTY: 90-DAY REPLACEMENT WARRANTY/FINAL SALE
