Features:

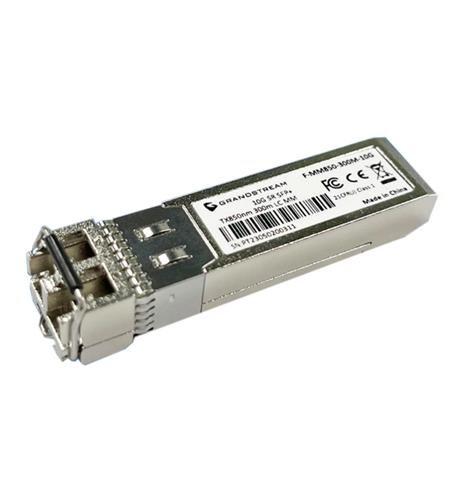

Hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection
Fiber Mode: Multi-Mode Fiber
Connector Type: Duplex LC
DDM: 10Gbps SFP+
Nominal Wavelength: 850nm
Data Rate: 10Gbps SFP+
Max Power Consumption: 1W
Transfer Distance: 0.3km
TX Power: -6 to -1dBm, ±3dB
RX Power: -11.1 to 0.5dBm, ±3dB
Operation Voltage: 3.3V±0.3V
Environmental: Operation: 0? to 70?, humidity: 5% to 85% Storage: -40? to 85?
Unit Weight: 18.50g
Standards: SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6
NOTE: PLEASE CONTACT US FOR INSTANT MAP (MINIMUM ADVERTISED PRICING) DISCOUNTS ON THIS ITEM.
WARRANTY: FINAL SALE
