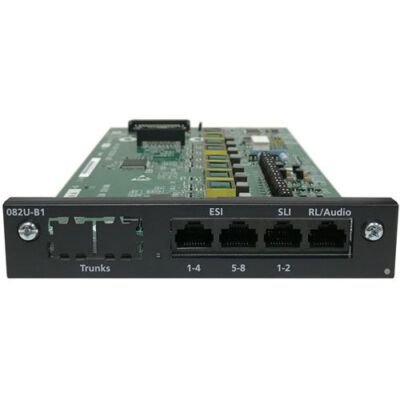

NEC SL2100 Digital/Analog Station Card BE116506
Features:
Provides interface for (8) digital stations and (2) analog stations
Also provides interface for: Music-on-Hold or Background Music source / External paging Zone
Equipped with (4) 8-conductor interface jacks
(2) for (8) digital stations
(1) for (2) analog stations (or Doorboxes)
(1) for Music-on-Hold/Background Music input, and External Paging Zone output, and (2) relay circuit connections
Installs only in universal slots 1-3 of Main or Expansion Chassis
Allows addition of (1) 3-Port CO Trunk Daughter Board (3COIDB) or (1) PRI Daughter Board (1PRDB)
Maximum (3) per Main or Expansion Chassis
Maximum (9) per system
The above relay circuits are available for:
Door-strike control, when analog ports are used for Doorboxes
Control for Music-on-Hold or Background Music source
Control of External Paging Equipment
WARRANTY: ONE-YEAR REPLACEMENT WARRANTY/FINAL SALE
