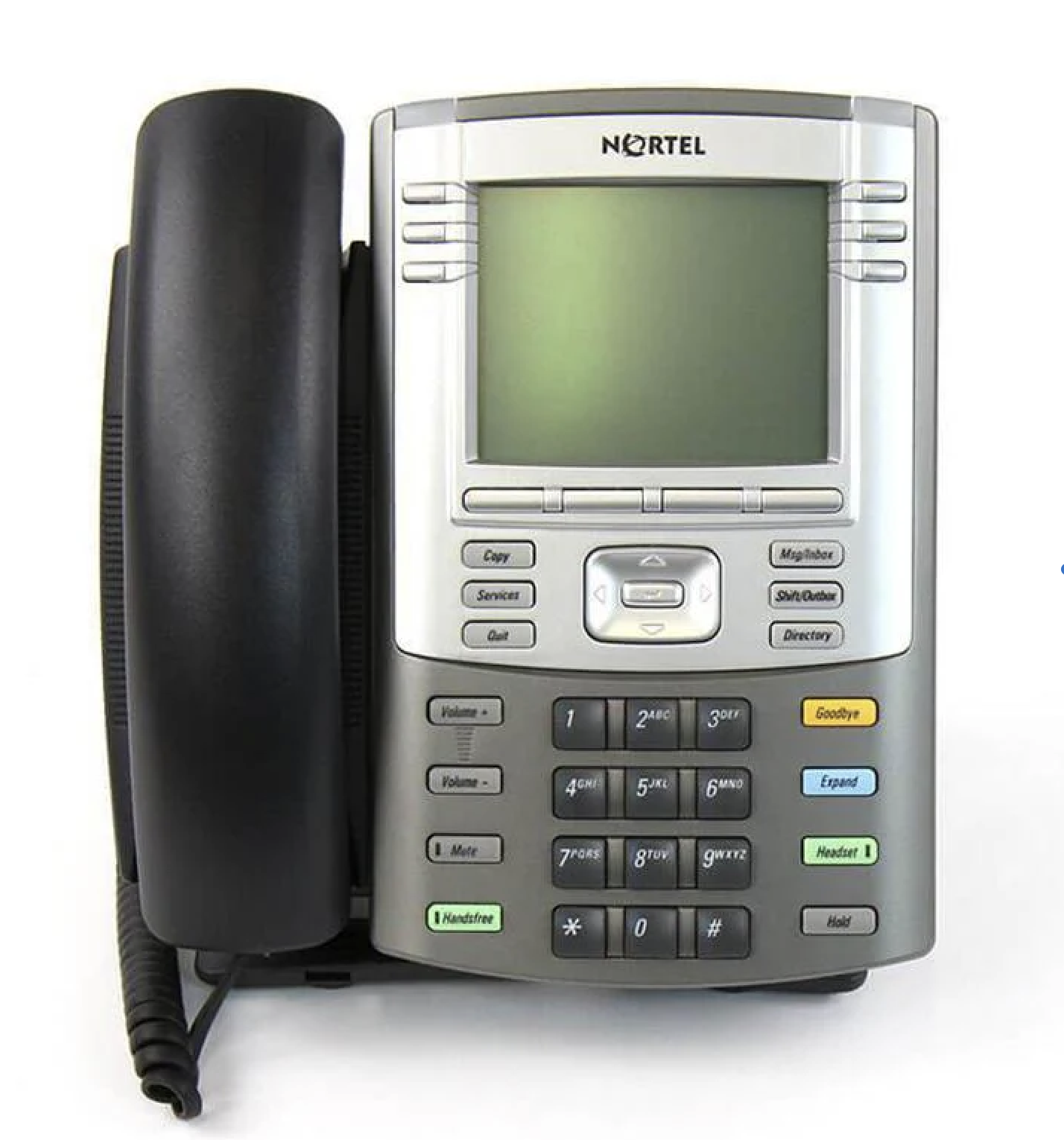

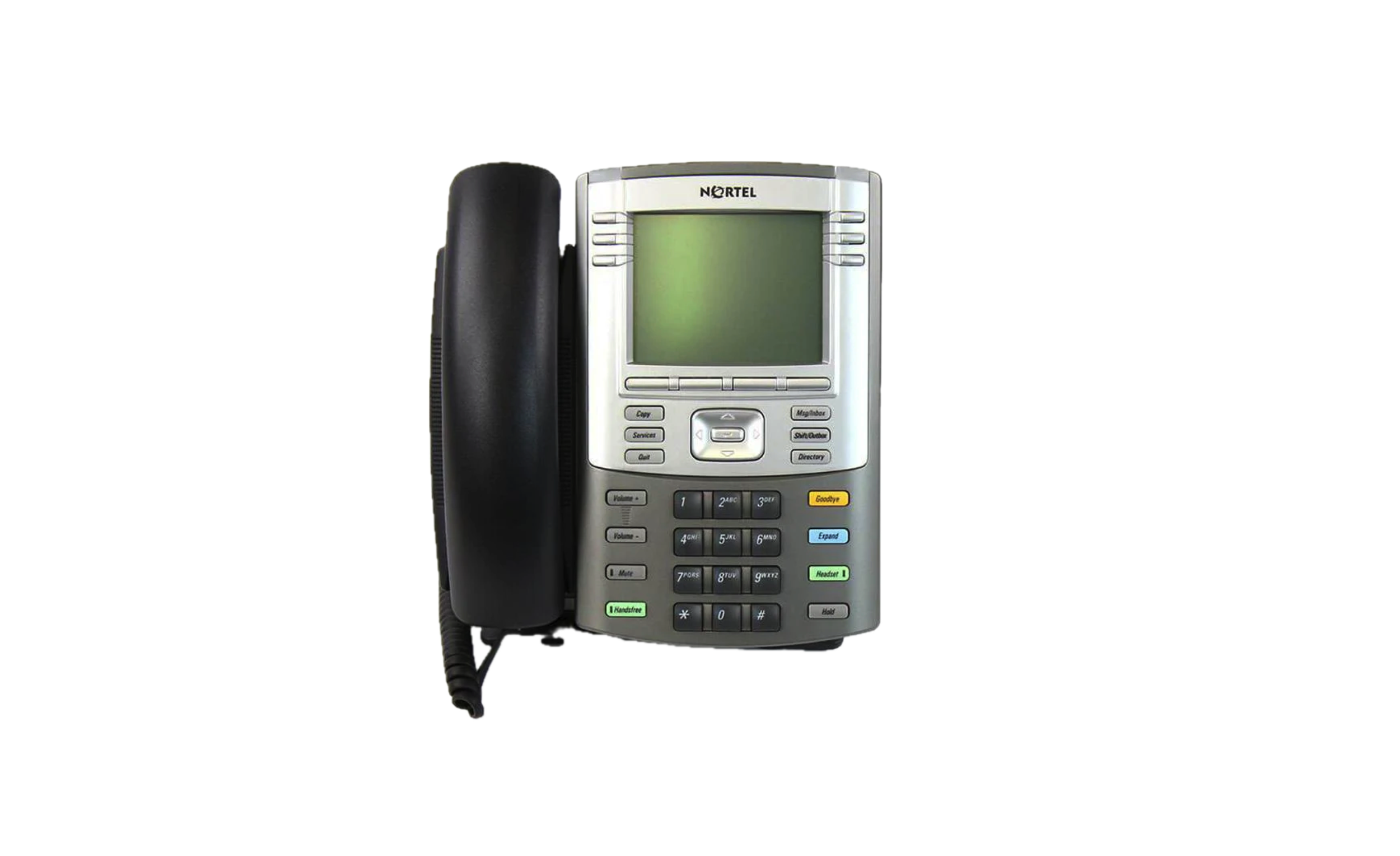

Nortel NTYS05BCE6 1140E IP Phone with Text Buttons
Features:
The Nortel IP Phone NTYS05BCE6 1140E delivers an innovative array of features including a high-resolution, fully-backlit, pixel-based graphical monochrome greyscale display, support for data and web-based applications as presented from external application servers, a four-way navigation cluster with new Enter/Send Key and, USB peripheral support for superior navigation experience, an integrated Bluetooth Audio gateway for greater freedom and mobility at the desktop, an integrated phone switch with Gigabit Ethernet LAN and PC ports, a local Tools Menu for simplified administration along with the suite of features delivered from Nortel Communication Servers.
Key Features:
Nortel Logo w/ TEXT Buttons
Supports up to twelve programmable line/feature keys, fourteen fixed keys and four soft label keys
High resolution, graphical, fully-backlit, monochrome greyscale, pixed-based (240 x 160) Liquid Crystal Display
Five-position (-5 to +55 degrees) adjustable footstand
Four-way navigation cluster with new Enter/Send key
Universal Serial Bus for support of standard USB mice, keyboard, and powered hubs
Data and web-centric applications text and graphical presentation support as delivered from external application servers
Integrated autosensing 10/100/1000 Base-T Ethernet switch with shared PC access (one LAN and one PC port)
Secure local Tools Menu for access to user preferences, configuration tools, diagnostics, and network statistics
Voice Message/Incoming Call and Feature Status Indicator LED's
IEEE 802.3af Power over Ethernet, pre-standard vendor power schemes, and local AC power options
Supports Expansion Module, delivering an additional 18 programmable line/feature keys per module
Icon and English-text based keycaps
Field upgradeable firmware via Trivial File Transfer Protocol (TFTP) or UNIStim File Transfer Protocol (UFTP)
Desk or Wall Mountable
Power Supply Not Included (see related product below)
Each phone includes handset, handset cord, patch cord and base.
WARRANTY: ONE-YEAR WARRANTY
