Features:

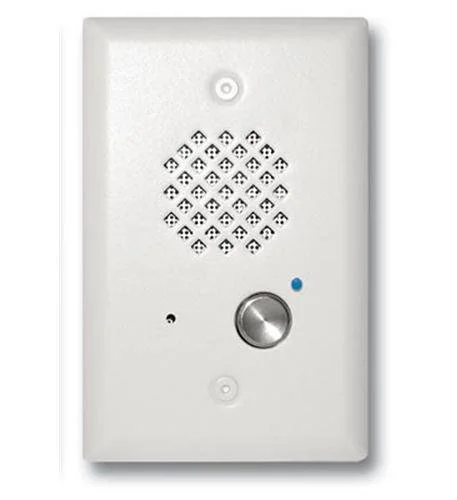

Compact size: Front panel is the size of a typical single gang midsize wall plate
Mounting: Flush mounts in a single gang electrical box (2.25” deep x 2.00” wide x 2.84” tall minimum) or surface mounts in a Viking model VE-3x5
Available in 5 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Polished Brass, Satin Black and Satin White
PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
Vandal Resistant Features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate, 316 stainless steel push button, carbon fiber reinforced plastic speaker screen, scratch resistant powder coating, hex drive mounting screws
E-40-EWP is designed to meet IP66 Ingress Protection Rating
Telephone line powered
Microphone and speaker volume controls
Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
Selectable auto answer feature for monitoring
Programmable VOX (mic/speaker) switching speed
Blue LED helps locate push button, indicate ringing and off hook
Color: White
Country of Origin: USA
WARRANTY: ONE-YEAR MANUFACTURER WARRANTY
FINAL SALE/NON-RETURNABLE ITEM
