Features:

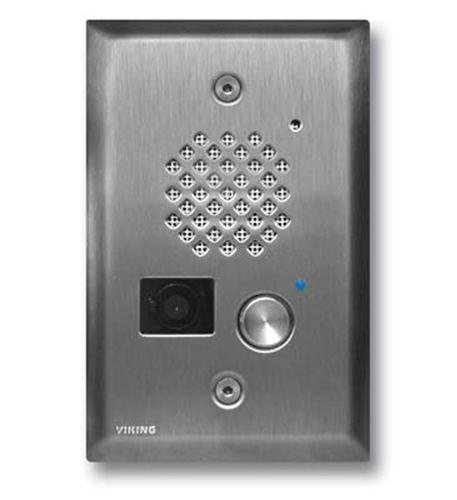

Viking video entry phone in Stainless Steel
E-50 Series video entry phones are compact, weather and vandal resistant speaker phones designed to providetwo-way handsfree audio communication and color composite video of who is at your door or gate
Compact size allows it to be mounted in a standardsingle gang electrical box
Replacement E-50 faceplates (PNL50) can be purchased separately - Can share a single phone line with house or small business telephones when used with a Viking model C-200 or C-2000A Entry Phone controller
Can alsobe connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with aViking model K-1900-5 auto dialer
Features a built-in high resolution color video camera, microphone and speaker volume controls, selectable autoanswer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed
Door or gate communication, business delivery entrances
Use with a Viking C-200to control one E-50 on a single phone line
Use with a Viking C-2000A to control 1 to 4 E-50’s and door/gate control on a single phone line
Provide unique front and back door chimes and paging when used with a Viking SLP-1 and C-2000A
Use with a Viking K-1900-5 for automatic speed dialing on telephone lines or analog PABX/KSU stationports
Use on an analog PABX station port with programmable ringdown capability
Built-in high resolution color video camera with wide viewing
Tilt/swivel adjustments
Wide operating temperature of -30° F to 150° F
Audio and video transmission on one CAT5E cable
Compact size: front panel is the size of a typical single gang midsize wall plate
Mounting: flush mount ina single gang (1.7" deep x 2.1" wide min) electrical box or surface mount in a Viking model VE-3x5 (not included)
Weather resistant features: mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, sealed camera lens, potted camera circuit board, stainless steel phone and camera mounting hardware
Vandal resistant features: 18 gauge stainless steel faceplate, stainless steel push button, stainless steel speaker screen, impact and scratch resistant camera lens, and hex drive mounting screws
Microphone and speaker volume controls
Programmable intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
Selectable auto answer feature for monitoring
Programmable VOX (mic/speaker)switching speed
Power: telephone line powered (18 VDC/20mA minimum)
Dimensions: faceplate: 123.8mm x 79.4mm x 4.6mm (4.875" x 3.125" x 0.18"), phone board: 71mm x 46mm x 42mm (2.8" x 1.8" x1.65")
Speaker volume: approximately 62db maximum @ 1m
Ring voltage: 25V AC RMS minimum (for auto answer)
CPC disconnect time: 300ms minimum
Brushed stainless steel
Color: Silver
Country of Origin: USA
WARRANTY: ONE-YEAR MANUFACTURER WARRANTY
FINAL SALE/NON-RETURNABLE ITEM
