Features:

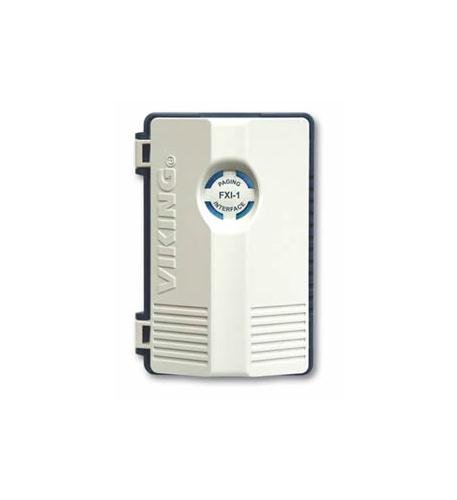

Viking universal paging interface
Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
No power supply required in FXS interface mode
Up to 6 units can be powered from one adapter in the FXO or VOX mode
30V DC talk battery for interfacing with FXO or unused phone system line input/trunk port
Floating 600 ohm paging output with volume control
Normally open or closed relay for external paging amp activation or interfacing the paging amp with an external background music source
800 Hz pre-announce page tone (on/off)
Compatible with 24 to 48 volt FXS operation
Calling party control (CPC) detection for immediate disconnect
Busy signal detect disconnect
2.5 to 5 second VOX silence disconnect timer
Programmable VOX trigger sensitivity
16 or 36 second default disconnect timer
Screw terminal block connections
Wall mount housing: (2) #6x3/4 panhead screws included
Power: 12-24V DC @ 100mA, 120V AC/12V DC @ 500mA, UL listed adapter included (not required in FXS mode)
Dimensions: 111mm x 76mm x 36mm (4.38” x 2.97” x 1.38”)
Shipping Weight: .48 kg (1.06 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
Relay Contacts: 30V DC@1A, 110V DC@0.3A, 125V AC@0.5A
VOX Minimum Audio Signal to Activate Relay: -30dbm minimum / -26dbm minimum @ 1KHz with VOX sensitivity switch at normal / lower positions
VOX Time Out Disconnect: 2.5 or 5 second
Default Time Out Disconnect: 16 or 36 seconds
Talk Battery: 30V DC
Color: White
Country of Origin: USA
WARRANTY: ONE-YEAR MANUFACTURER WARRANTY
FINAL SALE/NON-RETURNABLE ITEM
