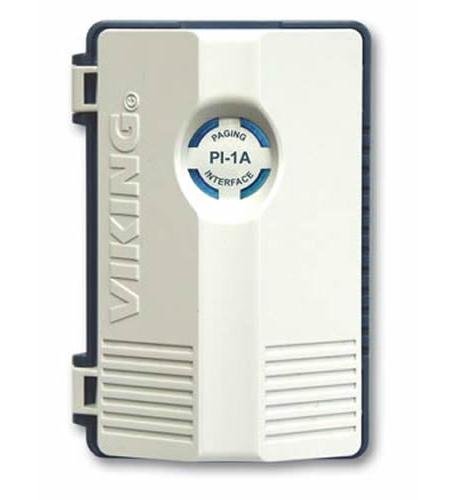

Viking PI-1A Universal Telecom Paging - New

Features:

• Integrate your public address system with nearly any phone system

• Cut out background music during paging

• Electronic night bell from ringing line or contact closure

• Floating 600 ohm output

• Selectable 22V DC talk battery for interfacing with unused phone system line input/trunk ports

• Paging port interface

• Ringing analog line input for night bell

• Contact closure input for night bell

• DPDT normally open and normally closed VOX activated contacts for cutting out background music

• Adjustable VOX contact time-out

• Adjustable VOX trigger sensitivity

• Adjustable ring volume

• Adjustable ring pitch

• Power: 120V AC/12V DC 500mA, UL listed adapter provided

• Dimensions: 111mm x 76mm x 36mm (4.38” x 2.97” x 1.38”)

• Shipping Weight: .48 kg (1.06 lbs)

• Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity

• Relay Contacts: 30V DC@1A, 110V DC@0.3A, 125V AC @0.5

• Maximum Ring Output: 490mV AC RMS no load, 150mV AC RMS@600 ohms

• VOX Minimum Audio Signal to Activate Relay: 30mV AC RMS@1K Hz

• Talk Battery: 22V DC

• Color: White

• Country of Origin: USA

WARRANTY: ONE-YEAR MANUFACTURER WARRANTY
FINAL SALE/NON-RETURNABLE ITEM
